 | 技术规格书 | Doc.No.： | |||||||||||||||||||

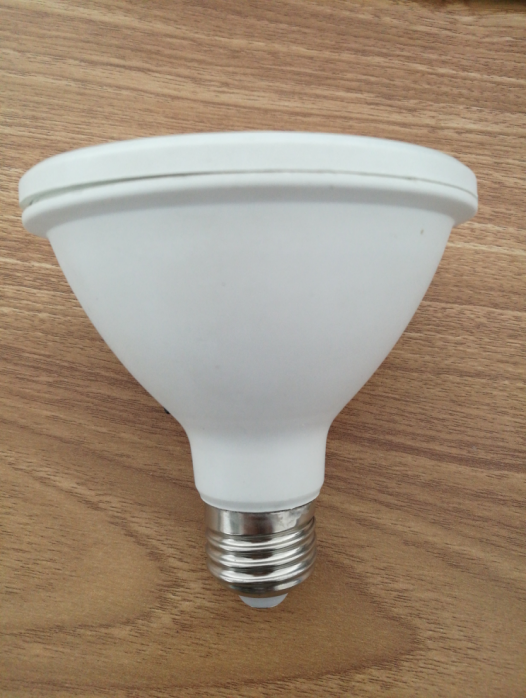

| Par38灯/11W/3000K/E27/100-250V/塑包铝/12SMD/PF0.9/IC/950LM/RA80/过EMC/过巴西认证/LUZ | 编制日期 | 2017-4-1 | |||||||||||||||||||
| JK | 1/2页(Page) | ||||||||||||||||||||
| 成品编码 | 99.205.1.2.102 99.205.1.6.102 | ||||||||||||||||||||
| 1 | 基本规格 General specifications | ||||||||||||||||||||
| 单位 | 指 标 Value | ||||||||||||||||||||
| 1> | 产品类型 Product type | / | Par38-15W | ||||||||||||||||||
| 2> | 发光角度 Beam angle | degree | 38 | ||||||||||||||||||
| 3> | 安全标准 Safety assurance | / | GB 24906 | ||||||||||||||||||
| 4> | 调光非调光 Dimmable or non_dimmable | / | 非调光 | ||||||||||||||||||
| 5> | 灯头材料 Base Material | E27 | / | 铝镀镍 | |||||||||||||||||
| 6> | 泡壳材料 Bubble Material | / | PC+铝 | ||||||||||||||||||
| 2 | 光电参数 Performance Parameters | Unit | 最小Min | 额定Spec | 最大Max | 测试条件(Test Condition) | |||||||||||||||
| 1> | 电源电压 Supply Voltage | Vrms | 100 | 220 | 250 | 额定电压下，25±2℃，灯头向上，点亮1小时稳定后测试 rated voltage,25±2℃, Base Up test after 0.5 hours light-on and stable (灯珠焊盘温度是96.1度）1000H<15%光蓑 | |||||||||||||||
| 2> | 电源频率 Input Frequency | Hz | 50 | 50 | 50 | ||||||||||||||||
| 3> | 输入电流 Input Current | Arms | 0.044 | 0.054 | 0.088 | ||||||||||||||||
| 4> | 输入功率 Input Power | W | 9.9 | 11 | 12.100 | ||||||||||||||||
| 5> | 功率因数 Power Factor | λ | >0.7 | >0.7 | / | ||||||||||||||||
| 6> | 工作频率 Ballast Operation Frequency | kHz | 65kHz-80kHz | ||||||||||||||||||
| 7> | 光通量 luminous Flux | 2700K | lm | / | / | / | |||||||||||||||
| 3000K | lm | 855 | 950 | / | |||||||||||||||||
| 4000k | lm | 900 | 1000 | / | |||||||||||||||||
| 6500k | lm | 900 | 1000 | / | |||||||||||||||||
| 8> | 显色指数 Colour rendering index | Ra | ＞80 | / | / | ||||||||||||||||
| 9> | 平均寿命 Lifetime ( 70% failure ) | hrs | 15000 | / | / | ||||||||||||||||
| 10> | 电磁兼容 | EMC | ok | ||||||||||||||||||
| 3 | 产品外形尺寸 Product figure and dimension | 单位 | 指 标 Value | ||||||||||||||||||
| Unit | 最小Min | 额定Spec | 最大Max | 备注 | |||||||||||||||||
| 1> | 灯总长Overall Lamp Length(A) | E27 Base | mm | 94.6 | 95 | 95.4 | |||||||||||||||
| 2> | 灯总宽Overall Lamp Wide(B) | / | mm | 94.8 | 95 | 95.2 | |||||||||||||||
| 3> | 泡壳外径 Overall Housing Diameter(C) | mm | 94.8 | 95 | 95.2 | ||||||||||||||||
 | |||||||||||||||||||||
| 版本号 | 修改日期 | 修改理由 | 设计 | 审核 | 会签 | 审批 | |||||||||||||||
| 1.0 | 2017-4-1 | 初版 | |||||||||||||||||||
